FujiClean PVN80 & PVN160
Commercial Wastewater Treatment Made Simple
The FujiClean PVN series is a high-capacity commercial wastewater treatment solution designed to deliver reliable secondary treatment in a compact, lightweight fibreglass system.
Available in PVN80 and PVN160 configurations, the PVN range can treat up to 25.6m³ of wastewater per day in a single tank, providing an efficient solution for commercial and larger onsite wastewater applications.
Designed for straightforward installation and operation, the PVN system combines FujiClean's advanced contact filtration technology with low-power air blowers and simple wireless monitoring.
Treatment Capacity
Total Nitrogen Reduction
Advantages of FujiClean System
High Treatment Capacity
Treats up to 25.6m³ per day in a single tank, providing substantial treatment capacity without a complex multi-tank arrangement
Lightweight Fibreglass Construction
Manufactured from Fibreglass Reinforced Polymer (FRP), helping simplify transportation, handling and installation
Plug & Play Operation
No PLC is required to operate the system. The PVN uses a compact MkIII Treatment Monitor with a wireless remote alarm for system monitoring
Low Operational Cost
Designed around quaterly servicing requirements and energy-efficient FujiMAC200 air blowers to help keep ongoing operating requirements simple
Advanced Contact Filtration
FujiClean treatment technology provides reliable secondary effluent quality in a compact commercial system

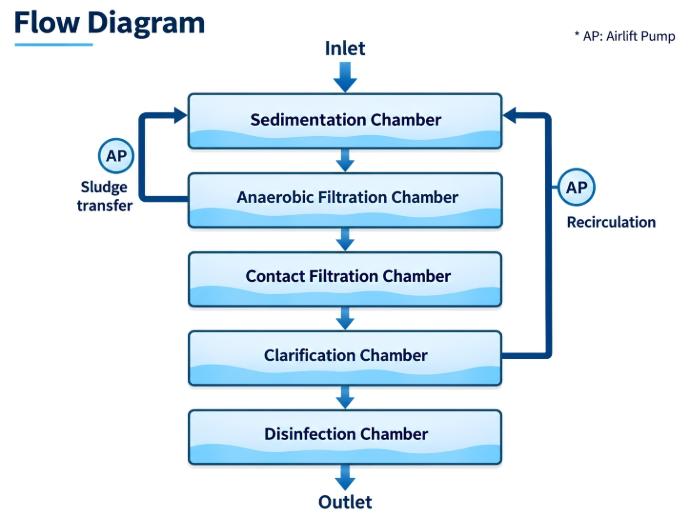

How does the FujiClean PVN system work?
Aerobic Contact Filtration – Advanced Wastewater Treatment
The FujiClean PVN system uses an aerobic contact filtration process to treat wastewater through a series of dedicated treatment chambers. Wastewater is progressively separated, biologically treated, clarified and disinfected before the treated effluent is discharged.
The treatment process combines:
- Sedimentation and solids separation
- Anaerobic filtration and denitrification
- Aerobic contact filtration and nitrification
- Water recirculation and sludge transfer using airlift pumps
- Clarification and final disinfection
Sludge collected in the anaerobic filtration and clarification chambers is continuously transferred back to the sedimentation chamber, helping maintain an efficient treatment process.
By combining these treatment stages within a compact system, the FujiClean PVN provides reliable effluent quality while supporting effective nitrogen reduction and wastewater treatment performance.

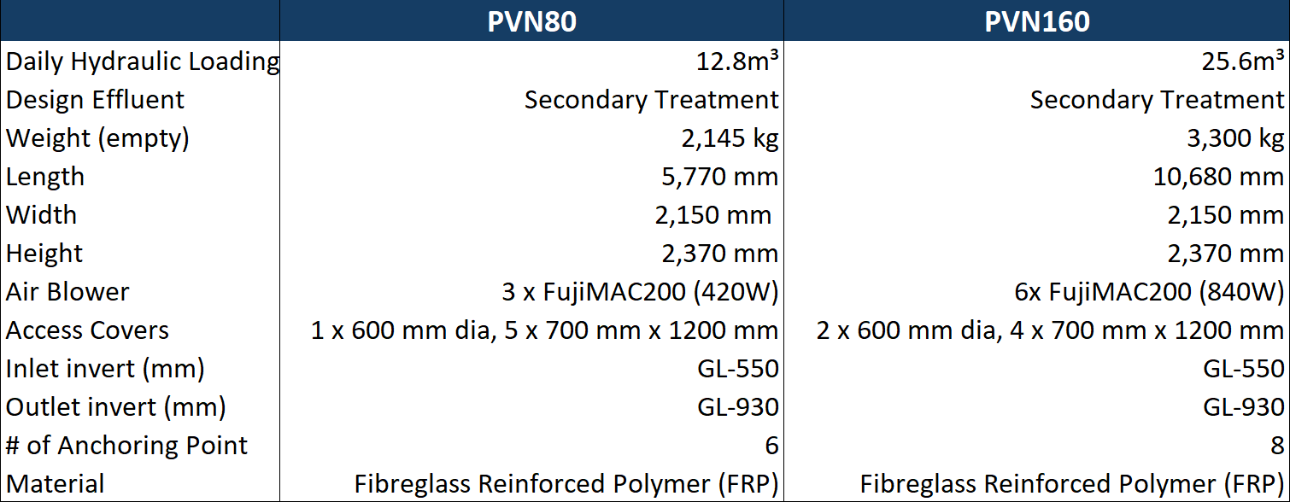

Compare PVN Models
