FujiClean CE Jumbo

The FujiClean CE Jumbo is a high-capacity commercial wastewater treatment system designed for larger-scale applications. It is engineered to provide efficient, reliable, and environmentally friendly solutions for wastewater management.







Enquire Now!

2400kg
Lightweight Composite Construction
13,500L
Capacity

Advantages of FujiClean System

High Treatment Capacity

Capable of processing large volumes of wastewater, suitable for commercial and industrial applications

Compact Design

Space-efficient systems that are easy to install and maintain

Energy Efficiency

Designed to minimize energy consumption while maintaining high performance

Compliance

Meet or exceed regulatory standards for wastewater treatment and effluent quality

Versatility

Suitable for various settings, including resorts, schools, service stations, and community housing projects, especially in areas not connected to municipal sewage systems

How do FujiClean systems work?

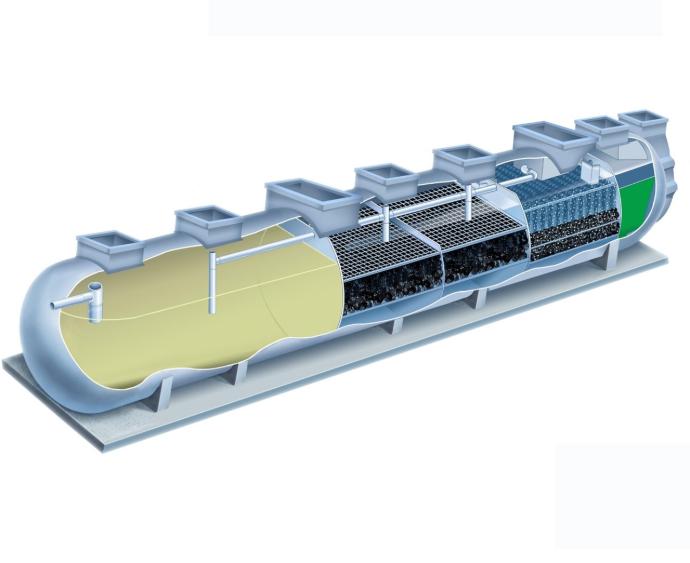

Contact Media Filtration – A 6-Stage Advanced Treatment Process

FujiClean’s Contact Media Filtration system reflects decades of dedicated research and innovation in onsite wastewater treatment technology. This highly effective process surpasses the standards for Advanced Secondary effluent quality—the highest classification in Australia.

The system integrates a combination of advanced techniques, including:

- Anaerobic and aerobic digestion

- Precision flow control through baffles and partition walls

- Effluent recirculation and sludge transfer

- Air-lift technology and flow equalisation

By strategically combining these processes, FujiClean delivers maximum treatment efficiency within a compact tank footprint, offering high performance with minimal environmental impact.

Specifications

Working Capacity
Daily Hydraulic Loading13,500 L
Sedimentation Chamber9.99 m3
Anaerobic Filtration Chamber10.02 m3
Aerobic Contact Filtration5.14 m3
Clarification Chamber2.25 m3
Total Volume27.40 m3
System Dimensions
Weight (empty)2,400 Kilograms
Length11,000 mm
Width2,120 mm
Height2,270 mm
Inlet Pipe100 mm dia
Outlet Pipe100 mm dia
